Description

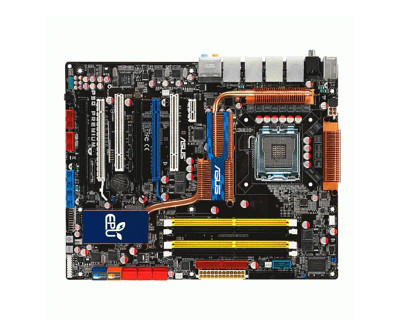

P5Q-EGREEN - Asus Intel P45 Chipset ATX Core 2 Series Processors Support Socket T Motherboard
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA775
Supported CPU(s)
Intel Celeron Dual-Core Processor, Intel Celeron Processor, Intel Core2 Duo Desktop Processor, Intel Core2 Extreme Processor, Intel Core2 Quad Processor, Intel Pentium Dual-Core Processor
FSB Speed (Maximum)
1600 MHz
Supported CPU Technologies
Dual Core, Enhanced Intel Speedstep Technology, Execute Disable Bit, Idle States, Intel 64 Architecture, Intel Virtualization Technology, Quad Core, Thermal Monitoring Technologies
Chipset
Intel P45 Express
South Bridge Chipset
Intel ICH10R
Number of Memory Slot(s)
4
Supported Memory Standard(s)
PC2-5300 (DDR2-667), PC2-6400 (DDR2-800), PC2-8500 (DDR2-1066), PC2-9600 (DDR2-1200)
Maximum Installed Memory
16 GB
Expansion Slots
PCI, PCI Express x1, PCI Express x16
Storage Controller
(ATA-7) Ultra ATA/133, Floppy Connector, Serial-ATA 3.0 Gbps
Audio Controller
Analog Devices AD2000B
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, FireWire (IEEE 1394), Microphone, PS/2, RJ-45 (Ethernet), S/PDIF - RCA, S/PDIF - TOSLINK, USB 2.0
Features
Memory:, Dual Channel Architecture, BIOS:, ASUS MyLogo3, DMI 2.0 support, WfM 2.0 support, ASUS EZ Flash 2, ASUS O.C. Profile, SMBIOS 2.4 support, Sleep / Wake Up:, Wake on LAN (WOL), Wake on Ring (WOR), Manual Settings:, Memory Voltage, Processor Co
