Description

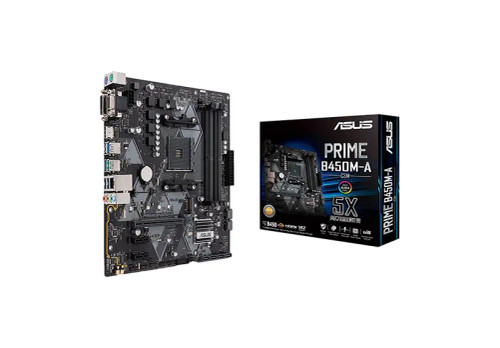

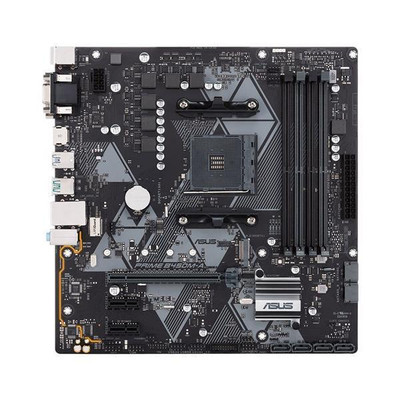

90MB0YR0-M0AAYC - Asus Prime B450M-A/CSM Socket AM4 AMD B450 Chipset Micro-ATX System Board Motherboard Supports Ryzen 3rd/2nd/1st Generation/Ryzen with Radeon Vega Graphics Series DDR4 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Chipset Manufacturer
AMD
Total Processor Supported
1
Processor Socket
Socket AM4
Processor Supported
Ryzen 3 PRO, Ryzen 5 PRO, Ryzen 7 PRO, Ryzen 3, Ryzen 5, Ryzen 7
Number of Memory Slots
4
Memory Form Factor
UDIMM, DIMM
Maximum Memory
64 GB
Memory Speed Supported
3 GHz (O.C.), 2.67 GHz, 2.40 GHz, 3.20 GHz (O.C.), 2.13 GHz, 2.80 GHz (O.C.)
Memory Technology
DDR4 SDRAM
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
10, 1, 0
Onboard Video
CPU Dependent Video
Audio Channels
7.1
Gigabit Ethernet
Yes
Number of Total Expansion Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
2
Number of PCI Express x16 Slots
1
Total Number of USB Ports
6
Number of USB 3.1 Ports
6
VGA
Yes
HDMI
Yes
DVI
Yes
Number of SATA Interfaces
6
Number of M.2 Interfaces
1
Total Number of Onboard USB Ports
6
Number of Onboard USB 3.1 Ports
2
Onboard S/PDIF Header
Yes
Form Factor
Micro ATX
Width
9.6
Depth
9.5
Environmentally Friendly
Yes
Environmental Certification
RoHS
Country of Origin
China
Warranty Information
5
