Description

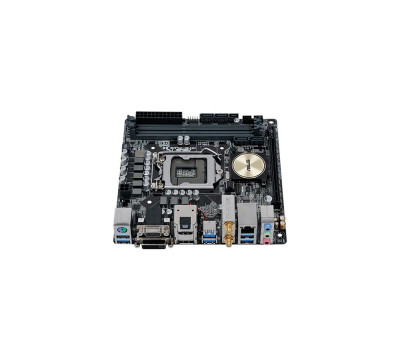

H170I-PRO - Asus Socket LGA1151 Intel H170 Chipet Mini-ITX System Board Motherboard Supports Core i7/i5/i3/Pentium/Celeron DDR3 2x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Mini-ITX
CPU Socket Type
LGA 1151
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Chipset
Intel H170
Number of Memory Slot(s)
2
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E 2.0 x16, PCI-E 3.0 x16
Storage Controller
SATA 6.0 Gbps
Audio Controller
Realtek ALC887
Network
Gigabit Ethernet
Connectors/Ports
D-Sub, DisplayPort, DVI-D, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x D-Sub, 1 x DisplayPort, 1 x HDMI, 2 x LAN (RJ45) port(s), 6 x USB 3.1 Gen 1 (blue), 1 x Optical S/PDIF out, 3 x Audio jack(s), 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac an
