Description

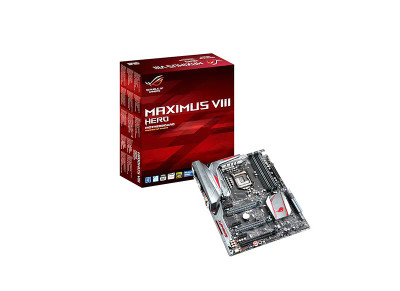

MAXIMUS-VIII-HERO - Asus ROG Desktop Motherboard Intel Z170 Chipset Socket H4 LGA-1151
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1151
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Chipset
Intel Z170
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400), PC4-21333 (DDR4-2666)
Maximum Installed Memory
64 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 3.0 x1, PCI-E 3.0 x16
Expansion Slots Details
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, +gray), 1 x PCIe 3.0/2.0 x16 (x4 mode, +black) , 3 x PCIe 3.0/2.0 x1
Storage Controller
SATA 6.0 Gbps
Network
Gigabit Ethernet
Connectors/Ports
8-pin 12V Power Connector, DisplayPort, HDMI, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x USB 3.1 Gen 2 (black)USB Type-CTM, 1 x USB 3.1 Gen 2 (red)Type-A, 2 x USB 3.1 Gen 1 (blue) , 4 x USB 2.0 , 1 x Optical S/PDIF out, 5 x Audio
