Description

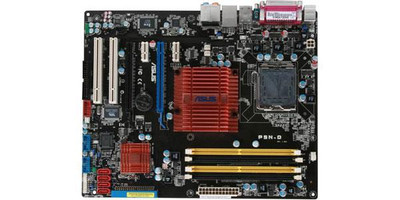

MIB3B0-G0AAY00Z - Asus P5N-D Socket LGA 775 Nvidia nForce 750i SLI Chipset Intel Core 2 Quad/ Core 2 Extreme/ Core 2 Duo/ Pentium Extreme/ Pentium
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 775
Supported CPU(s)
Intel Core2 Duo Desktop Processor, Intel Core2 Extreme Processor, Intel Core2 Quad Processor, Intel Pentium 4 Processor, Intel Pentium D Processor, Intel Pentium Processor Extreme Edition
Chipset
NVIDIA nForce 750i SLI
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC2-4200 (DDR2-533), PC2-5300 (DDR2-667), PC2-6400 (DDR2-800)
Maximum Installed Memory
8 GB
Expansion Slots
PCI-E 2.0 x16, PCI-E x1
Expansion Slots Details
2 x PCIe 2.0 x16 - Single VGA mode: x16 - SLI mode: Hardware ready for x16, x16, 2 x PCIe x1, 2 x PCI 2.2
Storage Controller
SATA 3.0 Gbps
Audio Controller
Realtek ALC883
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 1.1, USB 2.0
Connectors/Ports Details
Back Panel I/O Ports, 1 x Parallel, 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x IEEE 1394a, 1 x LAN(RJ45) port, 4 x USB 2.0/1.1, 8 -Channel Audio I/O, , Internal I/O Connectors, 2 x USB connectors support additional 4 USB ports, 1 x Floppy disk drive conn
