Description

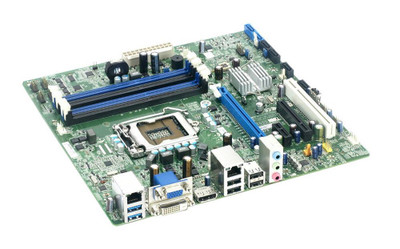

S5515AG2NR - Tyan Socket LGA1155 Intel Q67 Chipset micro-ATX Server Motherboard
Details
Brand
tyan
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H2 LGA-1155
Processor Supported
Core i5, Core i7, Core i3
Number of Memory Slots
4
Memory Form Factor
DIMM, UDIMM
Maximum Memory
32 GB
Memory Speed Supported
1.60 GHz, 1.33 GHz, 1.07 GHz
Memory Technology
DDR3 SDRAM
Controller Type
Serial ATA/300, Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 1+0
Onboard Video
CPU Dependent Video
Graphics Controller Manufacturer
Intel
Audio Channels
2.0
Gigabit Ethernet
Yes
Number of Total Expansion Slots
4
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
1
Total Number of USB Ports
6
Number of USB 3.0 Ports
2
VGA
Yes
DisplayPort
Yes
DVI
Yes
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
5
Form Factor
Micro ATX
Width
9.6
Depth
9.6
Environmentally Friendly
Yes
Environmental Certification
RoHS-6, WEEE, China RoHS
