Description

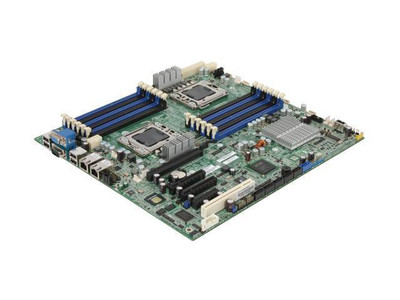

S7010AGM2NRF - Tyan S7010 Socket LGA 1366 Intel 5520/ICH10R Chipset Intel Xeon 5500/5600 Series Processors Support 12x DIMM 6x SATA 3.0Gb/s EEB
Details
Brand
tyan
Weight
8.00 LBS
Chipset Manufacturer
Intel
Total Processor Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
Number of Memory Slots
12
Maximum Memory
96 GB
Memory Speed Supported
1.33 GHz, 1.07 GHz, 800 MHz
Memory Technology
DDR3 SDRAM
Controller Type
Serial ATA/300
RAID Supported
Yes
RAID Levels
0, 1, 1+0, 5
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2050
Gigabit Ethernet
Yes
Number of Total Expansion Slots
6
Total Number of PCI Express Slots
4
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
1
Total Number of USB Ports
4
VGA
Yes
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Form Factor
SSI EEB
Width
12
Depth
13
Environmentally Friendly
Yes
Environmental Certification
RoHS
