Description

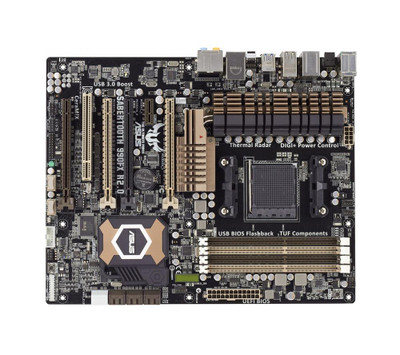

SABERTOOTH990R2 - Asus Socket AM3+ AMD 990FX/ SB950 Chipset AMD FX/ AMD Phenom II/ Athlon II/ Sempron 100 Series Processors Support DDR3 4x DIMM 6x
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
Socket AM3+
Supported CPU(s)
AMD Athlon II Processor, AMD Phenom II Processor, AMD Sempron Processor
Supported CPU Technologies
Cool n Quiet Technology
Chipset
AMD 990FX
South Bridge Chipset
AMD SB950
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-8500 (DDR3-1066)
Maximum Installed Memory
32GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E x1
Expansion Slots Details
3 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) *1, 1 x PCIe 2.0 x16 (x4 mode, black) , 1 x PCIe 2.0 x1 , 1 x PCI
Storage Controller
SATA 6.0 Gbps
Storage Controller Details
AMD SB950 controller, 6 x SATA 6Gb/s port(s), brown, Support Raid 0, 1, 5, 10, , ASMedia PCIe SATA controller, 2 x SATA 6Gb/s port(s), gray, 2 x eSATA 6Gb/s port(s), red
Audio Controller
Realtek ALC892
Network
Gigabit Ethernet
Connectors/Ports
8-pin 12V Power Connector, Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, eSATA, PS/2, PS/2 Keyboard, PS/2 Mouse, S/PDIF, TPM Header, USB 2.0, USB 3.1
Connectors/Ports Details
Internal I/O Connectors>, 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x TPM connector(s), 1 x COM port(s) connector(s), 8 x SAT
