Description

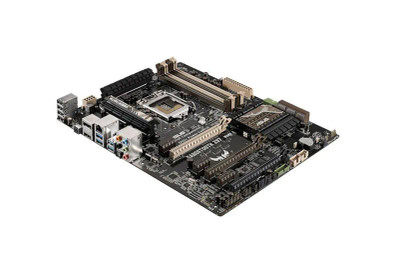

90MB0IS0-M0EAY0 - Asus Sabertooth Z97 Mark 2 Intel Z97 Chispet ATX Motherboard
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1150
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel Z97
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866)
Maximum Installed Memory
32GB
Expansion Slots
PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8) , 1 x PCIe 2.0 x16 (max at x4 mode, black) *1, 3 x PCIe x1
Storage Controller
SATA 6.0 Gbps
Storage Controller Details
Intel Z97 chipset, 6 x SATA 6Gb/s port(s), brown,, Support Raid 0, 1, 5, 10, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *2
Audio Controller
Realtek ALC1150
Network
Gigabit Ethernet
Connectors/Ports
8-pin 12V Power Connector, Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, DisplayPort, HDMI, USB 2.0, USB 3.1
Connectors/Ports Details
Internal I/O Connector, 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4 -pin), 1 x C
