Description

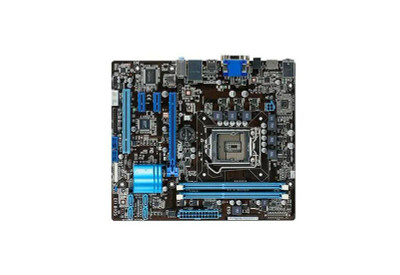

90MB0RM0-M0EAY0 - Asus H110S2 Socket LGA1151 Intel H110 Chipset Mini-STX System Board Motherboard Supports Core i7/i5/i3/Pentium/Celeron DDR4 2x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Mini-STX
CPU Socket Type
LGA 1151
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel H110
Number of Memory Slot(s)
2
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400)
Maximum Installed Memory
32 GB
Storage Controller
SATA 6.0 Gbps
Audio Controller
Realtek ALC3236
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, COM, CPU Fan Connector, HDMI, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x DisplayPort, 1 x HDMI, 2 x LAN (RJ45) port(s), 1 x USB 3.1 Gen 1 (blue), 1 x USB 2.0, 1 x DC power connector(s), , Internal I/O Ports, 1 x M.2 Socket 3 with M key, type 2280 storage devices support (both SATA & PCIE mode), 1 x COM
