Description

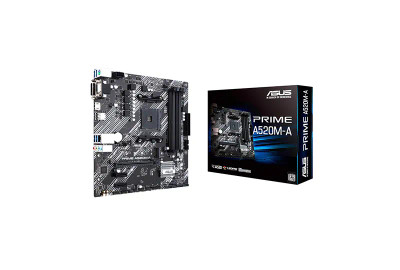

90MB14Z0-M0EAY0 - Asus PRIME A520M-A Socket AM4 AMD A520 Chipset Micro-ATX System Board Motherboard Supports Ryzen 5000/5000 G/4000 G/3000 DDR4 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
Socket AM4
Supported CPU(s)
AMD Ryzen Processor
Chipset
AMD A520
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC4-17000 (DDR4-2133), PC4-19200 (DDR4-2400), PC4-21333 (DDR4-2666), PC4-23466 (DDR4-2933), PC4-25600 (DDR4-3200)
Maximum Installed Memory
128 GB
Expansion Slots
PCI-E 3.0 x1, PCI-E 3.0 x16
Storage Controller
SATA 6.0 Gbps
Network
Gigabit Ethernet
Connectors/Ports
24-pin ATX Power Connector, Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.2 Gen 1 (blue) Type-A, 2 x USB 2.0, 3 x Audio jack(s), , Internal I/O Ports, 1 x CPU Fan connector(s), 2 x Chassis Fan connector(
