Description

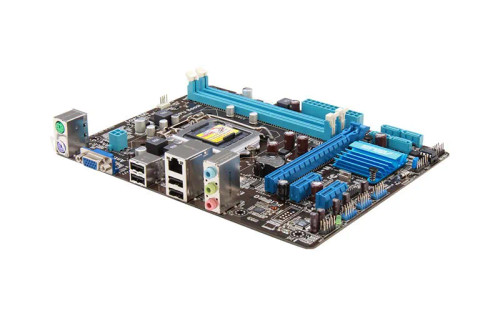

90-MIBIE0-G0EAY0VZ - Asus P8H61/USB3 R2.0 Socket LGA1155 Intel H61 Chipset ATX System Board Motherboard Supports 3rd/2nd Generation Core i7 / i5 / i3 / Pentium / Celeron Series DDR3 2x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Chipset
Intel H61 Express
Number of Memory Slot(s)
2
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-16000 (DDR3-2000), PC3-8500 (DDR3-1066)
Maximum Installed Memory
16 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16, PCI-E 3.0 x16
Storage Controller
SATA 3.0 Gbps
Audio Controller
Realtek ALC887
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, COM, CPU Fan Connector, Parallel, PS/2 Keyboard, PS/2 Mouse, RJ-45, TPM Header, USB 2.0, VGA
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x COM port(s), 1 x Parallel port(s), 3 x Audio jack(s), , Internal I/O Ports, 3 x USB 2.0 connector(s) support(s) additional
Warranty Information
8
