Description

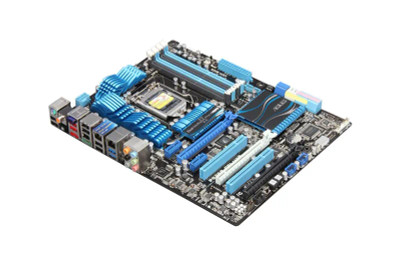

90-MIBGE0-G0EAY00Z - Asus P8Z68 Deluxe Socket LGA1155 Intel Z68 Chipset ATX System Board Motherboard Supports Core i7 / Core i5 / Core i3 Series DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel Z68 Express
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC100 SDRAM, PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-8500 (DDR3-1066)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
2 x PCIe 2.0 x16 (x16 or dual x8), 1 x PCIe 2.0 x16 (x4 mode, black) *1, 2 x PCIe 2.0 x1, 2 x PCI
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
Audio Controller
Realtek ALC889
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x Bluetooth module(s), 1 x eSATA 3Gb/s, 1 x Power eSATA 3Gb/s, 1 x IEEE 1394a, 2 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1, 8 x USB 2.0, 1 x Coaxial S/PDIF out, 1 x Optical S/PDIF out, 6 x Audio
Warranty Information
8
