Description

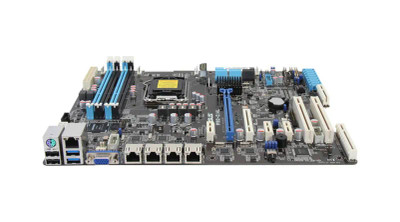

90SB0330-M0UAY5 - Asus P9D-C/4L Socket LGA1150 Intel C224 Chipset ATX System Board Motherboard Supports Xeon E3-1200 v3 Series DDR3 4x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1150
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Xeon Processor
Chipset
Intel C224
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600)
Maximum Installed Memory
32 GB
Expansion Slots
PCI-E x1, PCI-E x16, PCI-E x8
Storage Controller
SATA 3.0 Gbps, SATA 6.0 Gbps
On-Board Video Controller
ASPEED AST2300
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, TPM Header, USB 2.0, VGA
Connectors/Ports Details
On Board I/O, 1 x SATA DOM Power connector*3, 1 x VGA Header, 4 x Front LAN LED, 1 x SMBus , 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector), 2 x Serial Port Header, 1 x Management Connector , Onboard header for m
