Description

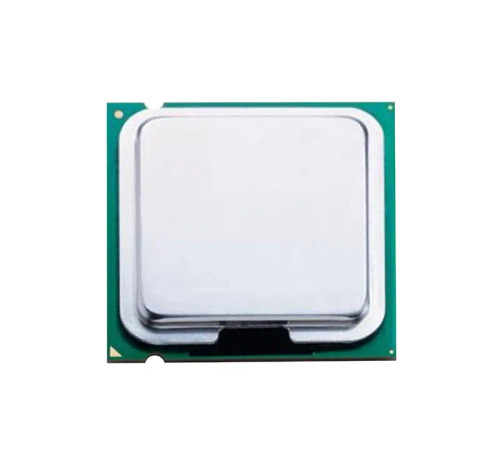

CL8067703022209 - Intel Xeon E3-1505LV6 Quad-core 4 Core 2.20GHz 8MB L3 Cache Socket FCBGA1440 Processor
Details
Brand
Intel
Weight
2.00 LBS
Processor Type
Embedded
Processor Family
E3-1500 v6
Series
Xeon E Processor
Core Model Type/ProcNo.
E3-1505L v6
Processor Code Name
Kaby Lake
Core Stepping
B0
Manufacturing Technology
14 nm
# of Cores
4
# of Threads
8
Clock Speed
2.20 GHz
L3 Cache Size
8 MB
Thermal Power
25 Watts
Max Memory Size
64 GB
Memory Types
DDR4-2400
Maximum Memory Speed
2400 MHz
Memory Channels
2
Maximum Memory Bandwidth
34.1 GB/s
ECC Memory Supported
Yes
CPU Socket Type
BGA1440
Max CPU Configuration
1
TJUNCTION
100 °C
Package Size
42mm x 28mm
Processor Graphics
Intel HD Graphics P630
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.00 GHz
Graphics Output
eDP/DP/HDMI/DVI
4K Support
Yes, at 60Hz
Max Resolution (HDMI)
4096 x 2304 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)
4096 x 2304 @ 60Hz
DirectX Support
12
OpenGL Support
4.4
Intel Quick Sync Video
Yes
Intel InTru 3D Technology
Yes
Intel Clear Video HD Technology
Yes
Intel Clear Video Technology
Yes
Embedded Options Available
Yes
PCI Express
3.0
PCI Express Configurations
1 x16, 1x8+2x4, 2 x8
Max # of PCI Express Lanes
16
Advanced Technologies
Enhanced Intel SpeedStep Technology, Idle States, Instruction Set 64-bit, Intel 64, Intel Hyper-Threading Technology, Intel Identity Protection Technology, Intel Transactional Synchronization Extensions, Intel Turbo Boost Technology 2.0, Intel Virtua
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Security & Reliability
Execute Disable Bit, Intel AES New Instructions, Intel Memory Protection Extensions (Intel MPX), Intel Software Guard Extensions (Intel SGX), Intel Trusted Execution Technology, Secure Key
Product Condition
OEM
Standard Warranty
21 days
