Description

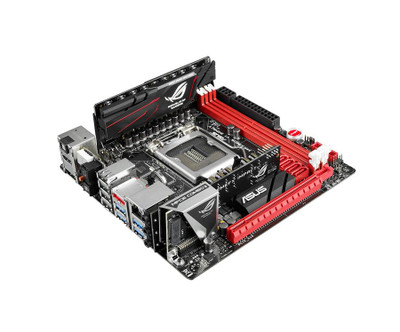

MAXIMUS6IMPACT - Asus Maximus VI Impact Socket LGA 1150 Intel Z87 Chipset 4th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Mini-ITX
CPU Socket Type
LGA 1150
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel Z87
Number of Memory Slot(s)
3
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-19200 (DDR3-2400), PC3-21300 (DDR3-2666)
Maximum Installed Memory
16 GB
Expansion Slots
Mini PCI, PCI-E 2.0 x16, PCI-E 3.0 x16
Expansion Slots Details
1 x PCIe 3.0/2.0 x16, 1 x mini-PCIe 2.0 x1 *1
Storage Controller
SATA 6.0 Gbps
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, HDMI, PS/2 Keyboard, PS/2 Mouse, RJ-45, TPM Header, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x DisplayPort, 1 x HDMI, 1 x eSATA, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 1 (blue), 4 x USB 2.0, 1 x Optical S/PDIF out, 3 x Audio jack(s), 1 x Clear CMOS button(s), 1 x ROG Connect On/ Off switch(es), 1 x Q-Code LED, 1 x DirectKe
