Description

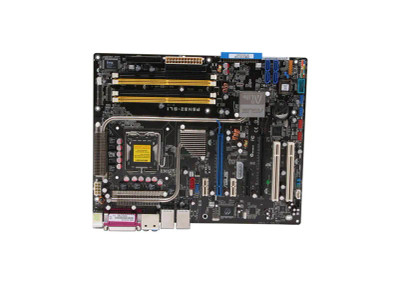

P5N32-SLI - Asus Nvidia nForce4 SLI Intel Edition DDR2 4-Slot ATX Motherboard Socket LGA775
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 775
Supported CPU(s)
Intel Celeron Processor, Intel Core2 Duo Desktop Processor, Intel Core2 Extreme Processor, Intel Pentium 4 Processor, Intel Pentium D Processor, Intel Pentium Processor Extreme Edition
FSB Speed (Maximum)
1333 MHz
Chipset
NVIDIA nForce 680i SLI
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC2-4300 (DDR2-533), PC2-5400 (DDR2-667), PC2-6400 (DDR2-800)
Maximum Installed Memory
8 GB
Expansion Slots
PCI-E x1, PCI-E x16
Expansion Slots Details
2 x PCIe x16 , support NVIDIAĀ® SLIĀĀ¢ technology, at full x16, x16 speed (blue). x8 speed (white), 1 x PCIe x1, 2 x PCI 2.2
Storage Controller
SATA 3.0 Gbps
Audio Controller
Analog Devices AD1988B
Network
Gigabit Ethernet
Connectors/Ports
Chassis Fan Connector, CPU Fan Connector, PS/2 Keyboard, PS/2 Mouse, RJ-45, USB 1.1, USB 2.0
Connectors/Ports Details
Back Panel I/O Ports, 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x S/PDIF Out, 1 x IEEE 1394a, 2 x LAN(RJ45) port, 4 x USB 2.0/1.1, , Internal I/O Connectors, 3 x USB connectors supports additional 6 USB 2.0 ports, 1 x Floppy disk drive connector, 1 x IDE
