Description

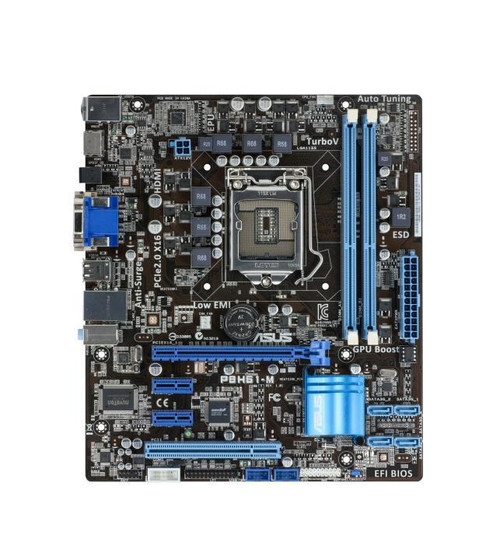

P8H61-M-LE-B3 - Asus P8H61-M LE REV 3.0 Desktop Motherboard Intel Socket H2 LGA-1155 Micro ATX 1 x Processor Support 16GB DDR3 SDRAM Maximum RAM Serial ATA/300 No Controller Yes 1 x PCIe x16 Slot
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
Micro ATX
CPU Socket Type
LGA 1155
Supported CPU(s)
Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel H61 Express
Number of Memory Slot(s)
2
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-8500 (DDR3-1066)
Maximum Installed Memory
16 GB
Expansion Slots
PCI, PCI-E 2.0 x1, PCI-E 2.0 x16
Expansion Slots Details
1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1, 1 x PCI
Storage Controller
SATA 3.0 Gbps
Audio Controller
Realtek ALC887
Network
Gigabit Ethernet
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI, 1 x D-Sub, 1 x LAN (RJ45) port(s), 6 x USB 2.0, 3 x Audio jack(s), , Internal I/O Ports, 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x COM port(s) connector(s), 4
