Description

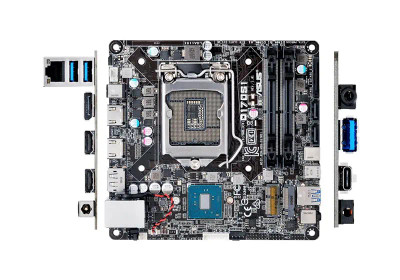

Q170S1 - Asus Socket LGA1151 Intel Q170 Chipset Mini-STX System Board Motherboard Supports Core i7/i5/i3/Pentium/Celeron DDR4 2x DIMM
Details
Brand
ASUS
Weight
8.00 LBS
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Supported CPU Technologies
Intel Turbo Boost Technology
Chipset
Intel Q170
Number of Memory Slot(s)
2
Supported Memory Standard(s)
PC4-17000 (DDR4-2133)
Maximum Installed Memory
32 GB
Storage Controller
SATA 6.0 Gbps
Storage Controller Details
Intel® Q170 chipset, 1 x M.2 Socket 3, with M key, type 2280 storage devices support (both SATA & PCIE mode), 2 x SATA 6Gb/s port(s)
Network
Gigabit Ethernet
Connectors/Ports
DisplayPort, HDMI, RJ-45, USB 3.1
Connectors/Ports Details
1 x DisplayPort, 2 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1 (blue) , 1 x DC power connector(s)
Features
ASUS 5X Protection II, ASUS LANGuard 2.5X higher surge tolerance, ASUS Overvoltage Protection World-class circuit-protecting power design, ASUS DIGI+ VRM 3 Phase digital power design, ASUS DRAM Overcurrent Protection Prevents damage from short circui
