Description

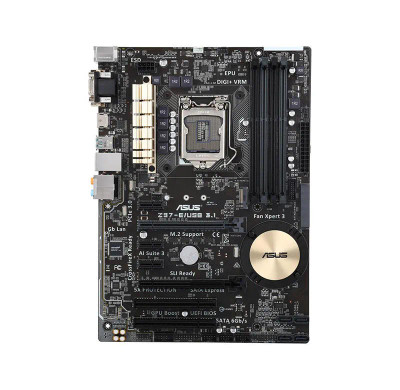

Z97-E/USB3.1 - Asus LGA1150 Intel Z97 DDR3 Quad CrossFireX Quad SLI SATA3 USB3.1 M.2 SATA Express A GbE ATX System Board Motherboard
Details
Brand
ASUS
Weight
8.00 LBS
Form Factor
ATX
CPU Socket Type
LGA 1150
Supported CPU(s)
Intel Celeron Processor, Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor
Chipset
Intel Z97
Number of Memory Slot(s)
4
Number of Memory Channel(s)
2
Supported Memory Standard(s)
PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-19200 (DDR3-2400)
Maximum Installed Memory
32 GB
Expansion Slots
PCI, PCI-E 2.0 x16, PCI-E 3.0 x16
Storage Controller
SATA 6.0 Gbps
Network
Gigabit Ethernet
Connectors/Ports
Audio-In, Audio-Out, Chassis Fan Connector, COM, CPU Fan Connector, DVI-D, PS/2 Keyboard, PS/2 Mouse, RJ-45, TPM Header, USB 2.0, USB 3.1
Connectors/Ports Details
Back I/O Ports, 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2 (teal blue), 2 x USB 3.1 Gen 1 (blue) , 2 x USB 2.0 , 6 x Audio jack(s), , Internal I/O Ports, 1 x USB 3.1 Gen 1 connecto
